Footbridge of Peace

Casalecchio di Reno - 2002 - 2004

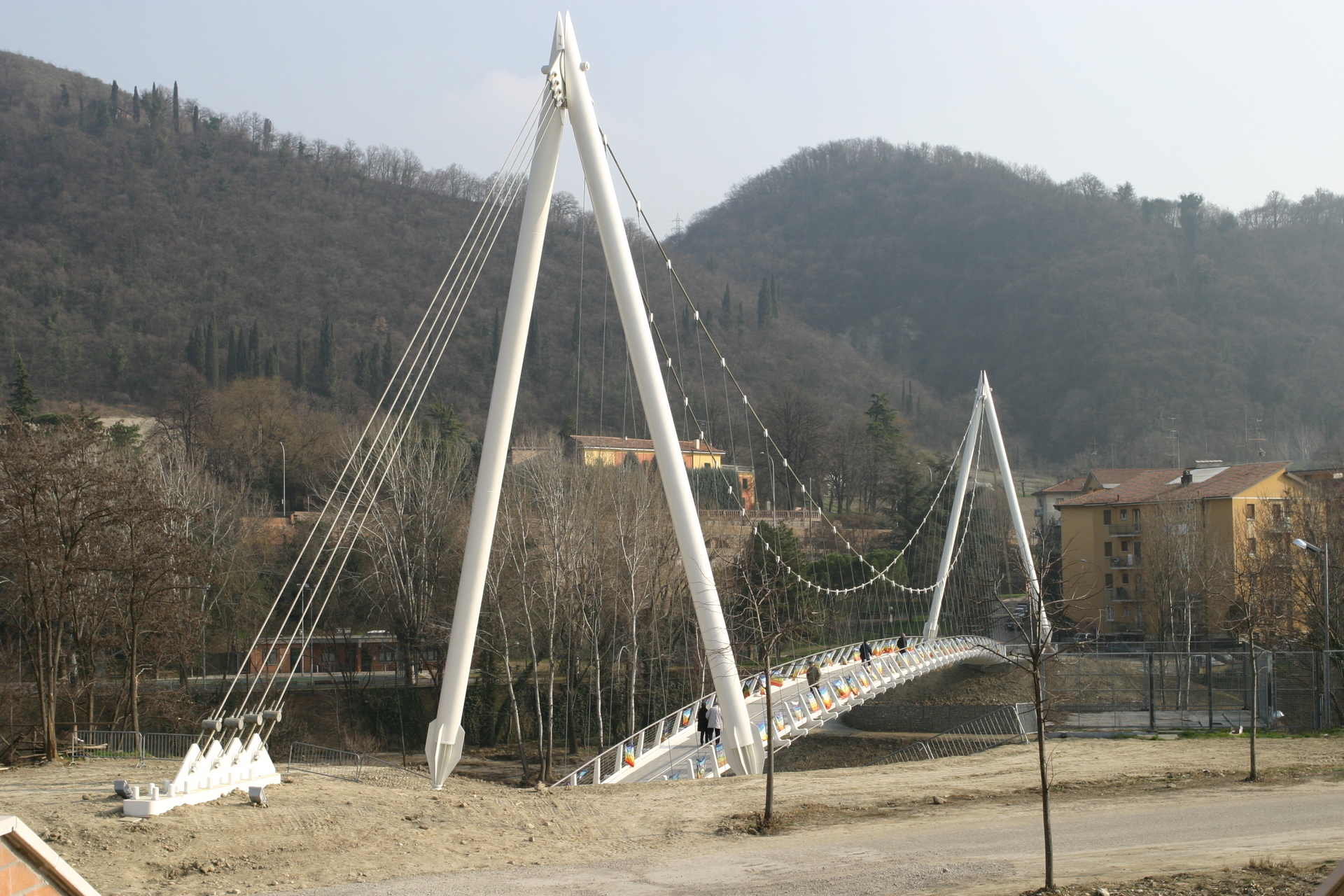

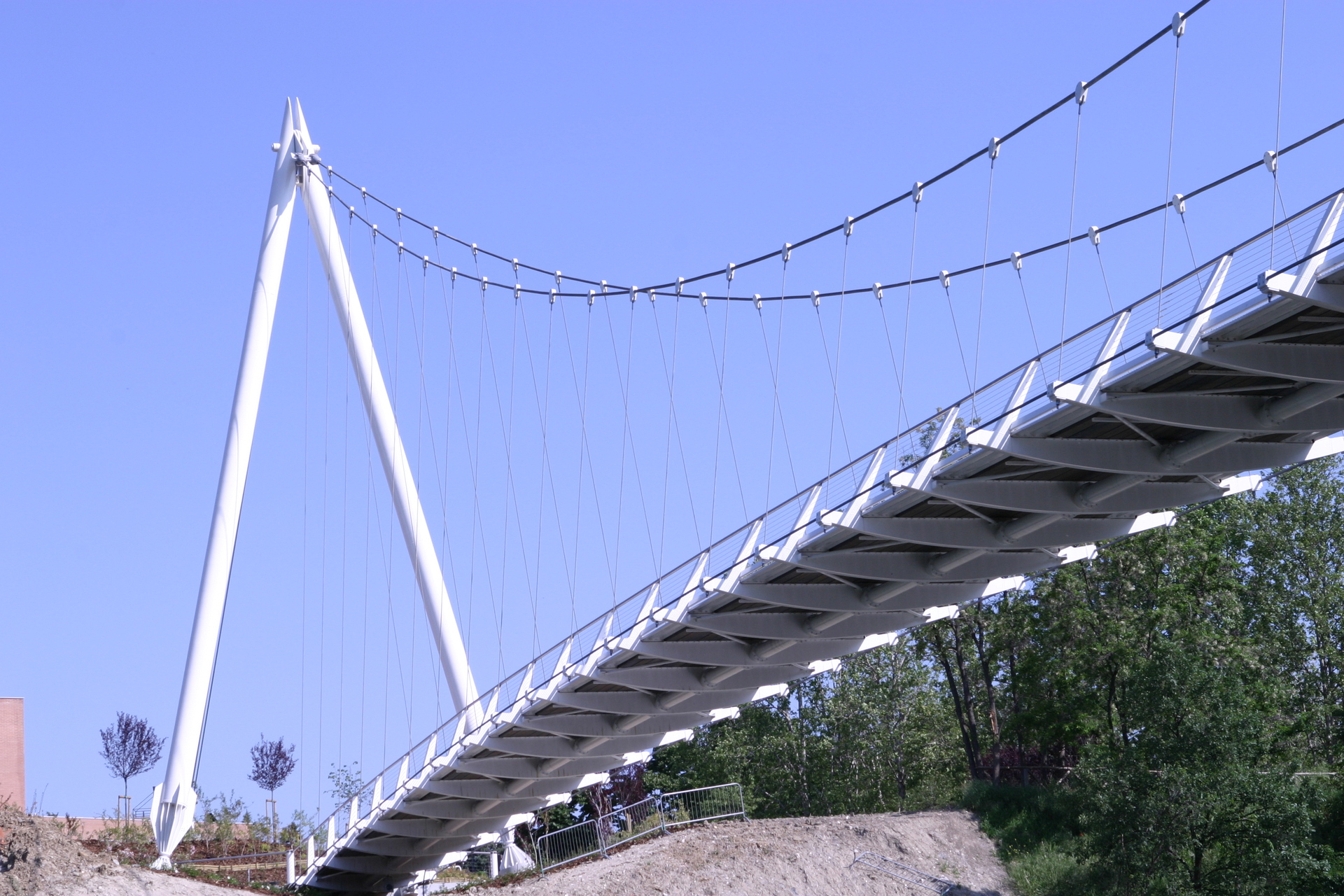

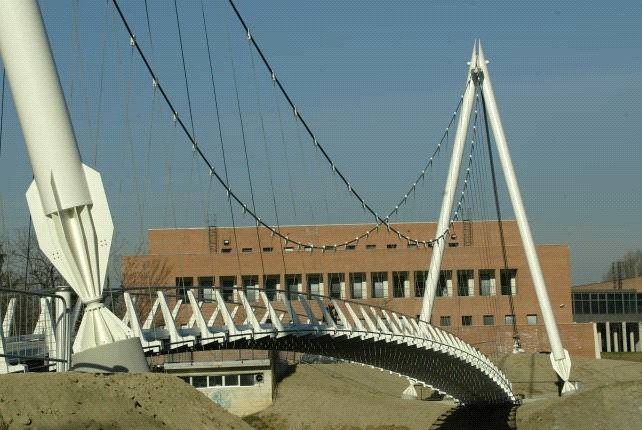

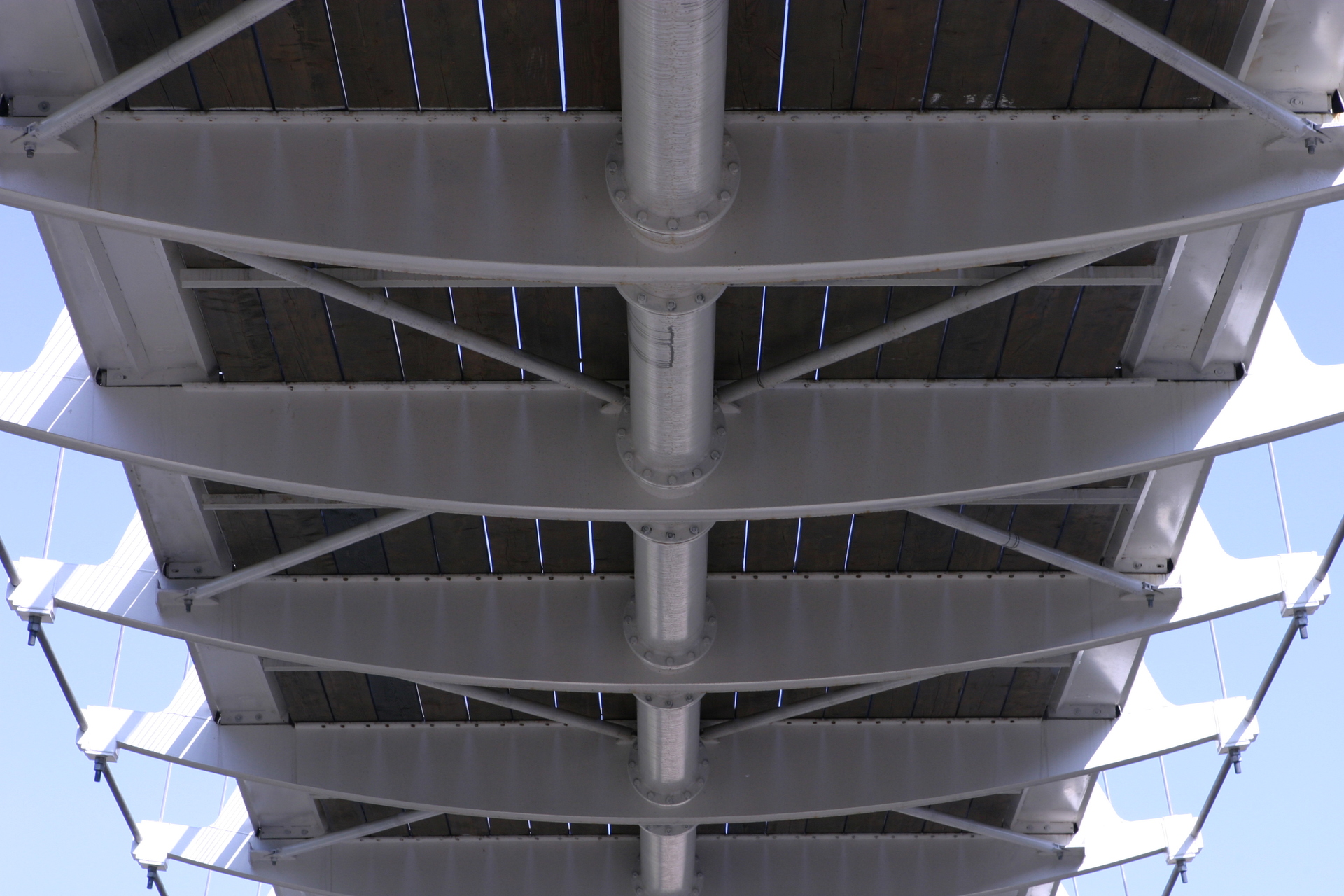

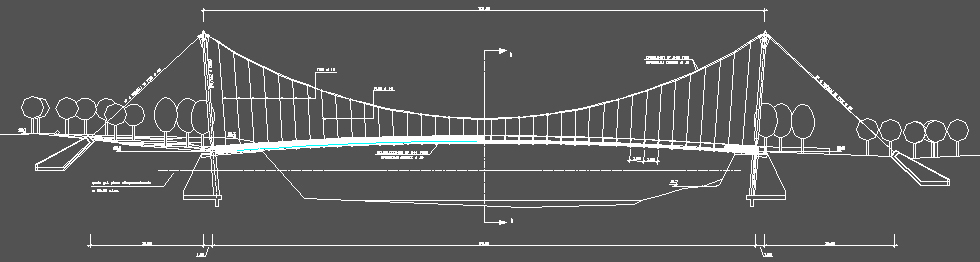

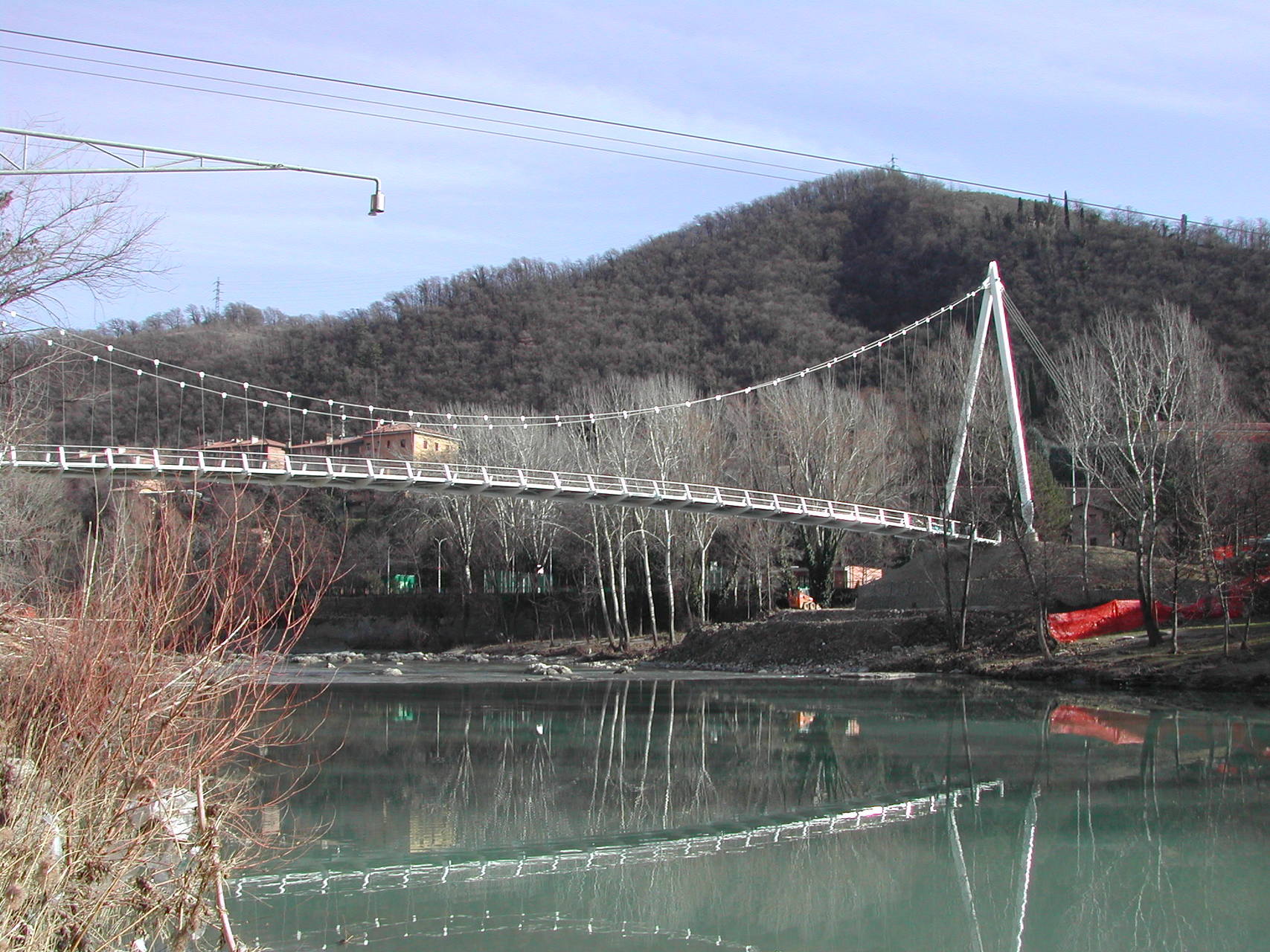

This 100m long pedestrian suspended bridge structure is made by a system of bearing and stabilizing cables with opposite curvatures and a steel deck with peculiar trusses with “gondole” shape suspended by vertical stays.

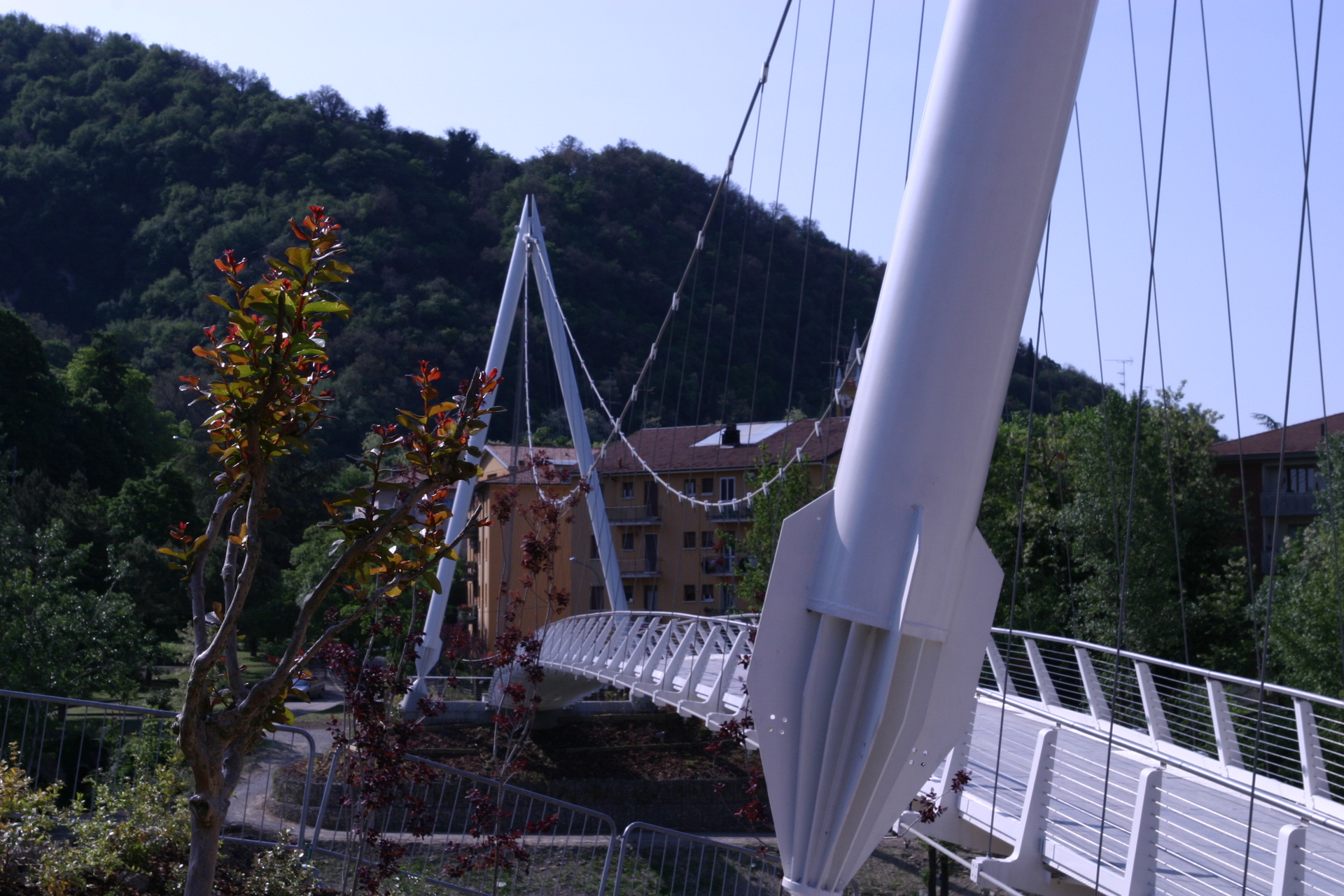

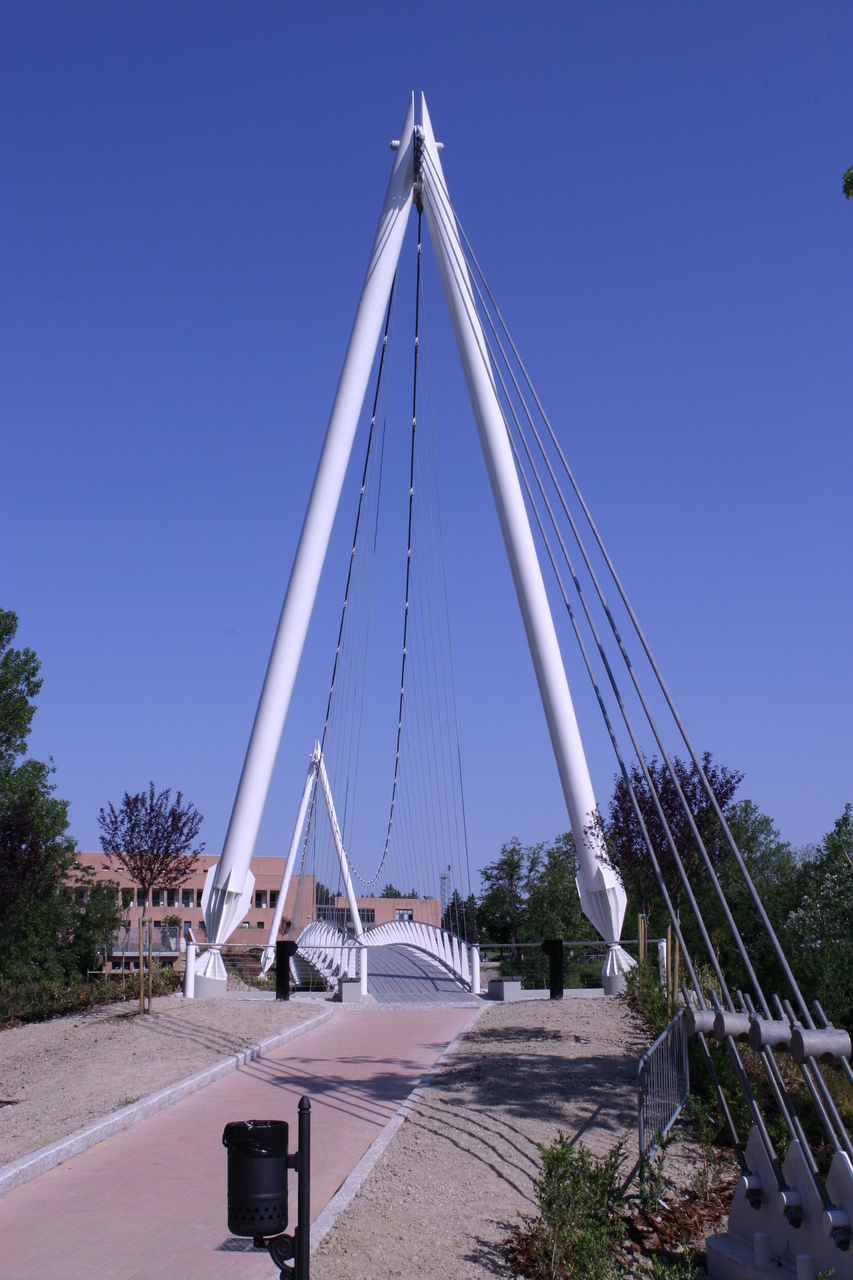

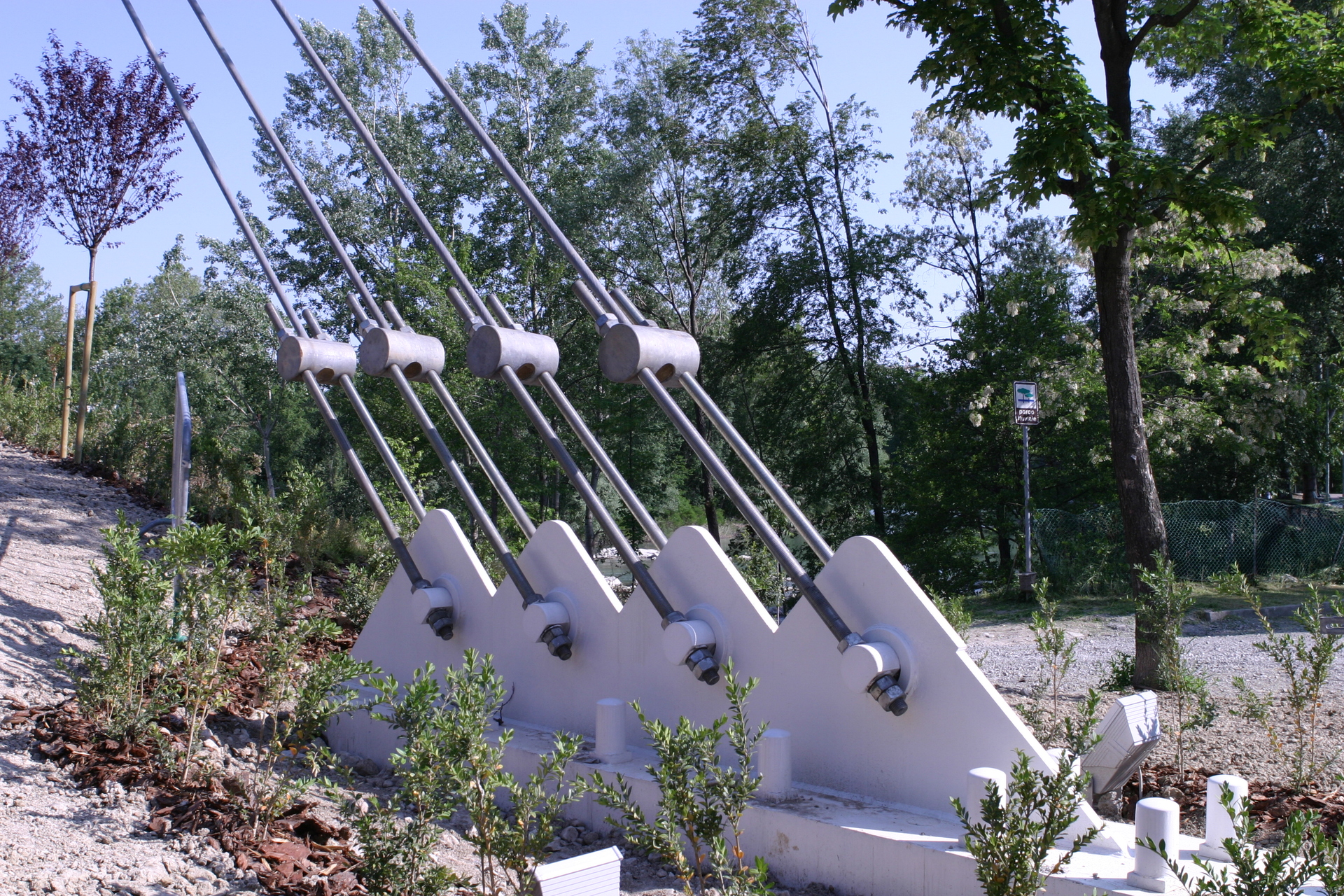

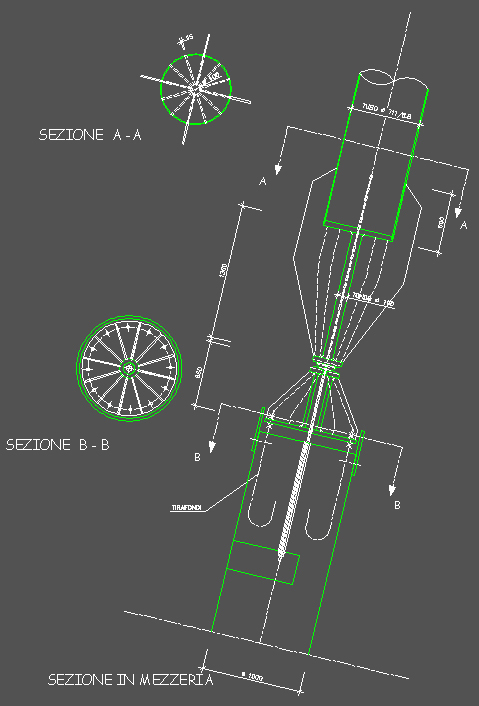

The anchorage system is made by a “A” shaped CHS steel tripod and zinc-coated and painted cable ties.

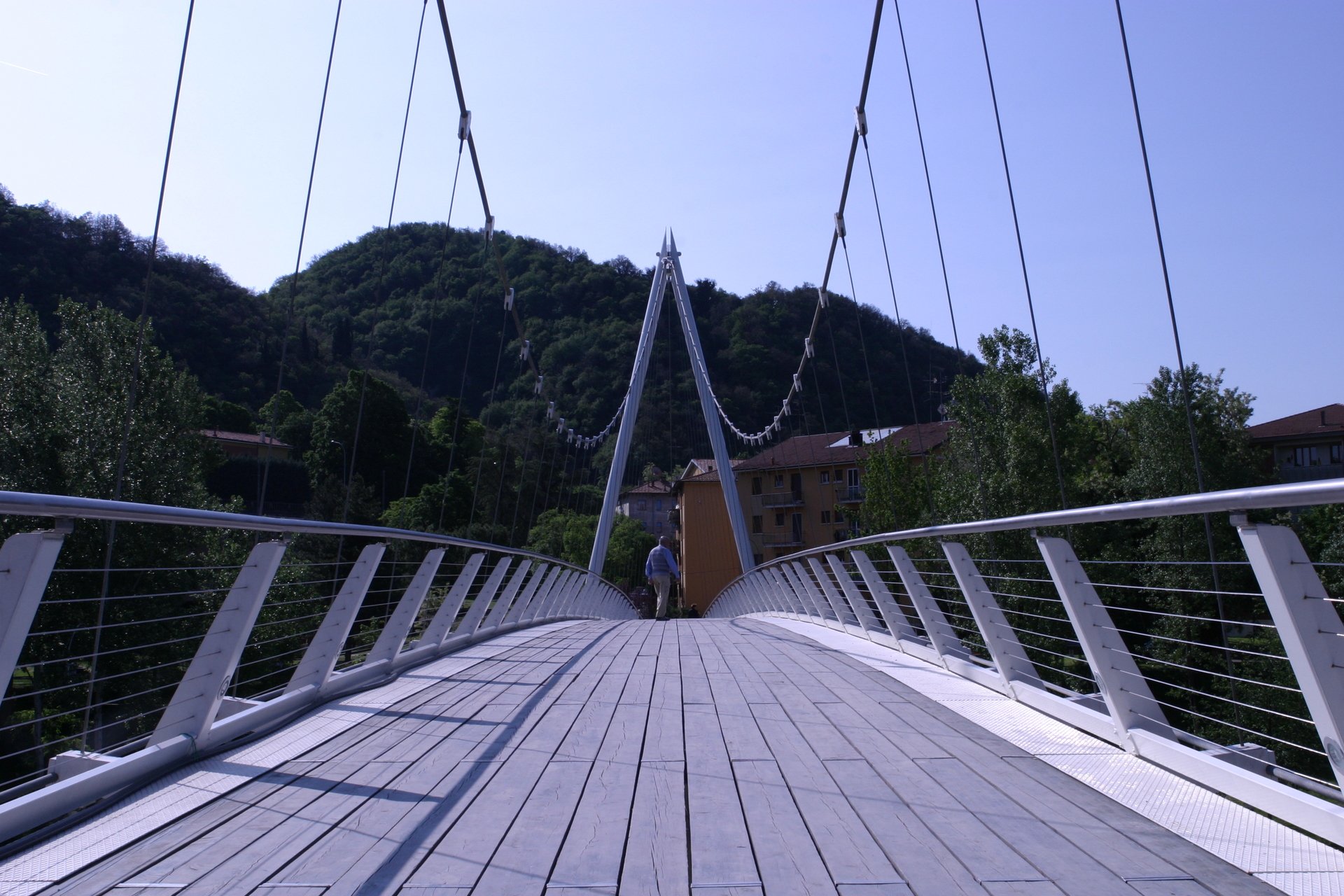

The parapet is made by inox steel cables.

Performed service
Tender, preliminar and final structural and architectural design
Client
Casalecchio di Reno Municipality
Year
2002 - 2004
Dimensional parameters
Span 98m
Cost of the project
620.000 €
