Footbridge over Swan River

Perth - 2015 - 2020

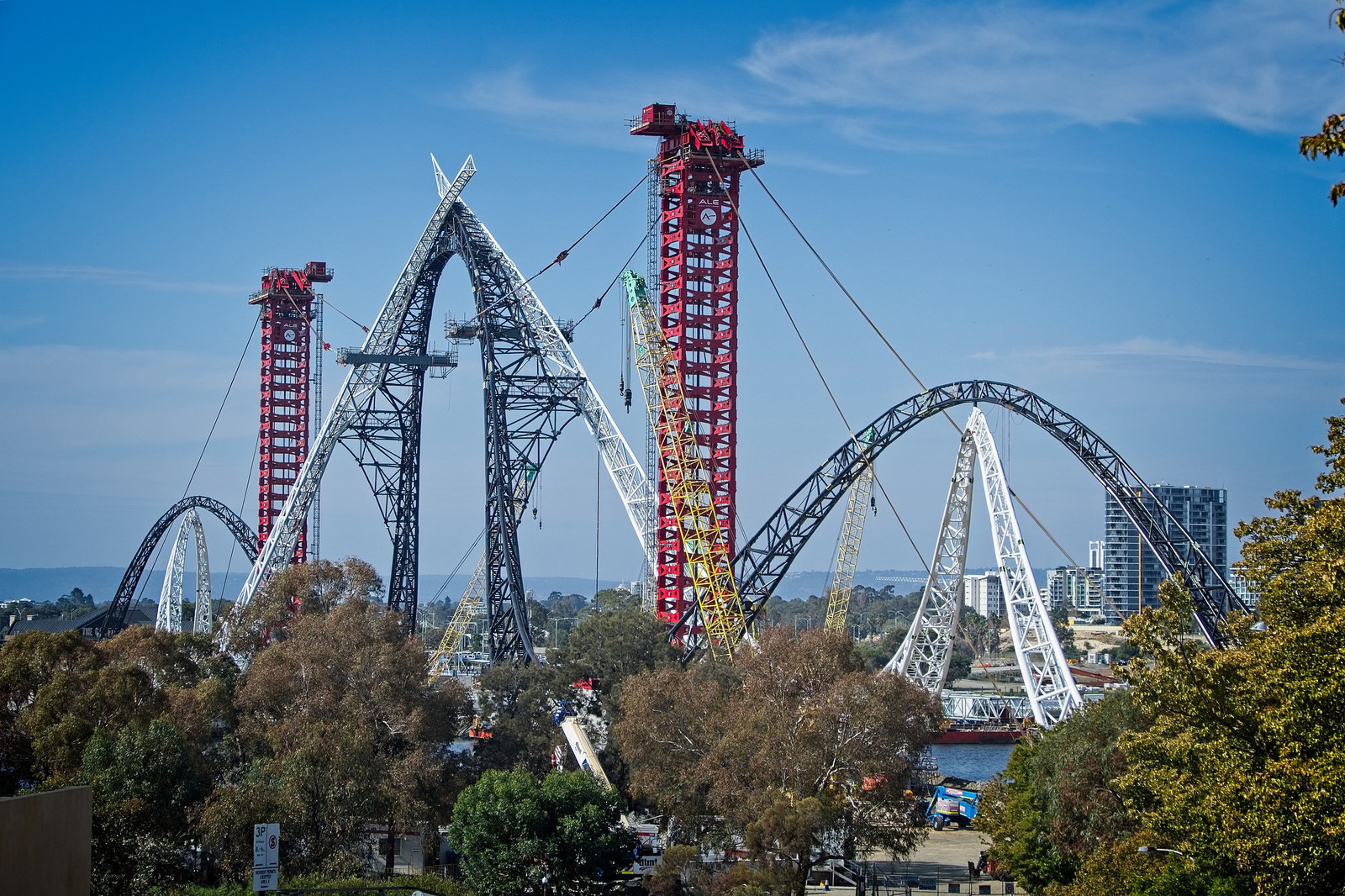

This 400m length bridge (144m length central span and 84m length two lateral spans) is made by three steel arches that support a steel deck by cable stays. Arches geometry follows architectural shape: each arch is composed by 4 legs supported by concrete piers.

Main arches are linked with a hinge detail which allows rotation in longitudinal plane, but guarantees a transversal rigid connection. At apex location each arch has a 25m cantilever part.

The two lateral arches are connected at the top with a CHS profile, that is an hinge restrain with vertical axis, such to improve arches instability resistance under transversal wind load action effect.

Technical Sheet
Performed service
Tender, preliminar and final structural design
York Rizzani Joint Venture
2015 - 2020
Dimensional parameters
3 Span with length 103.5m - 165m - 103.5m
Structural work cost
40.000.000 €
