Marco Polo Stadium

Venice - 1999

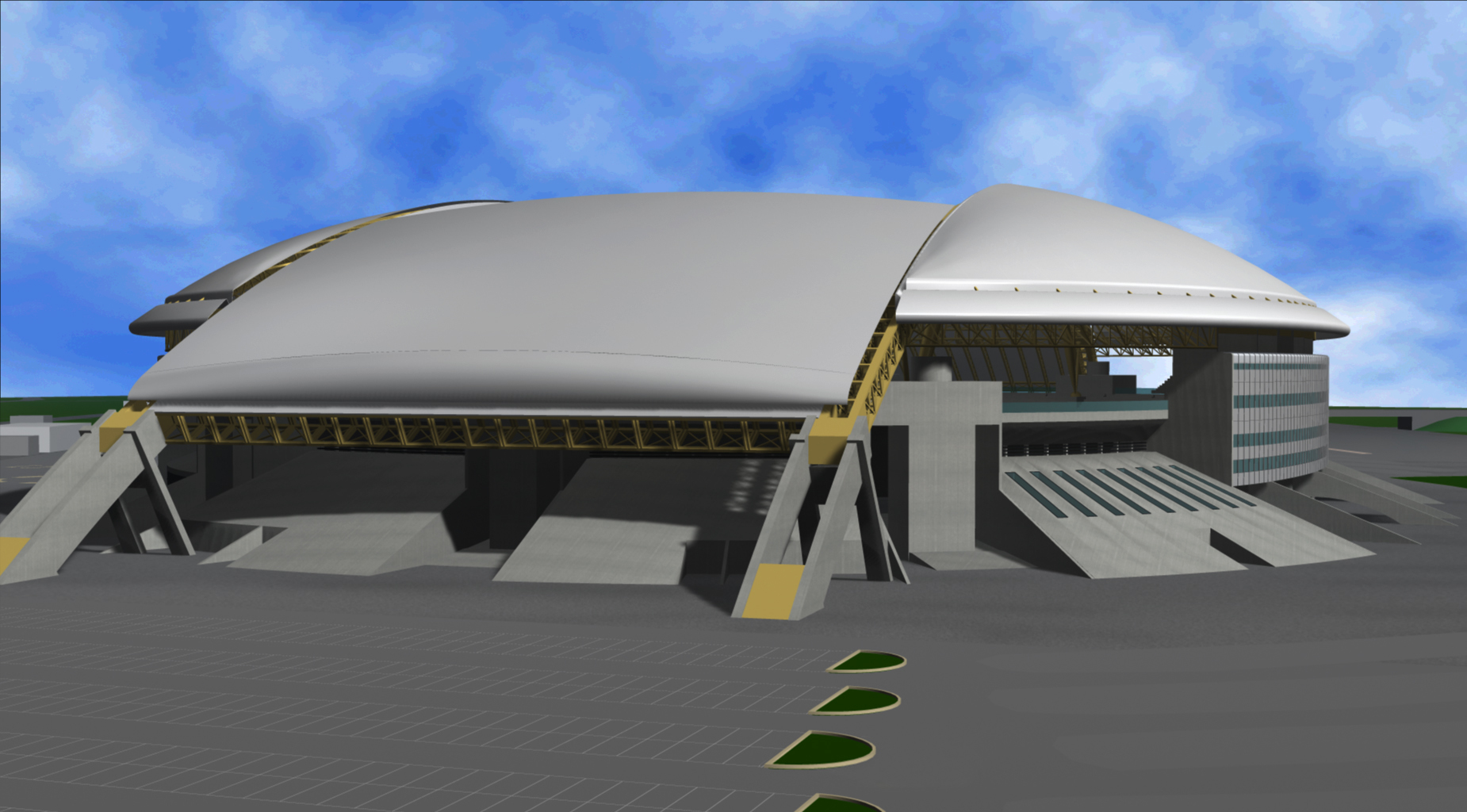

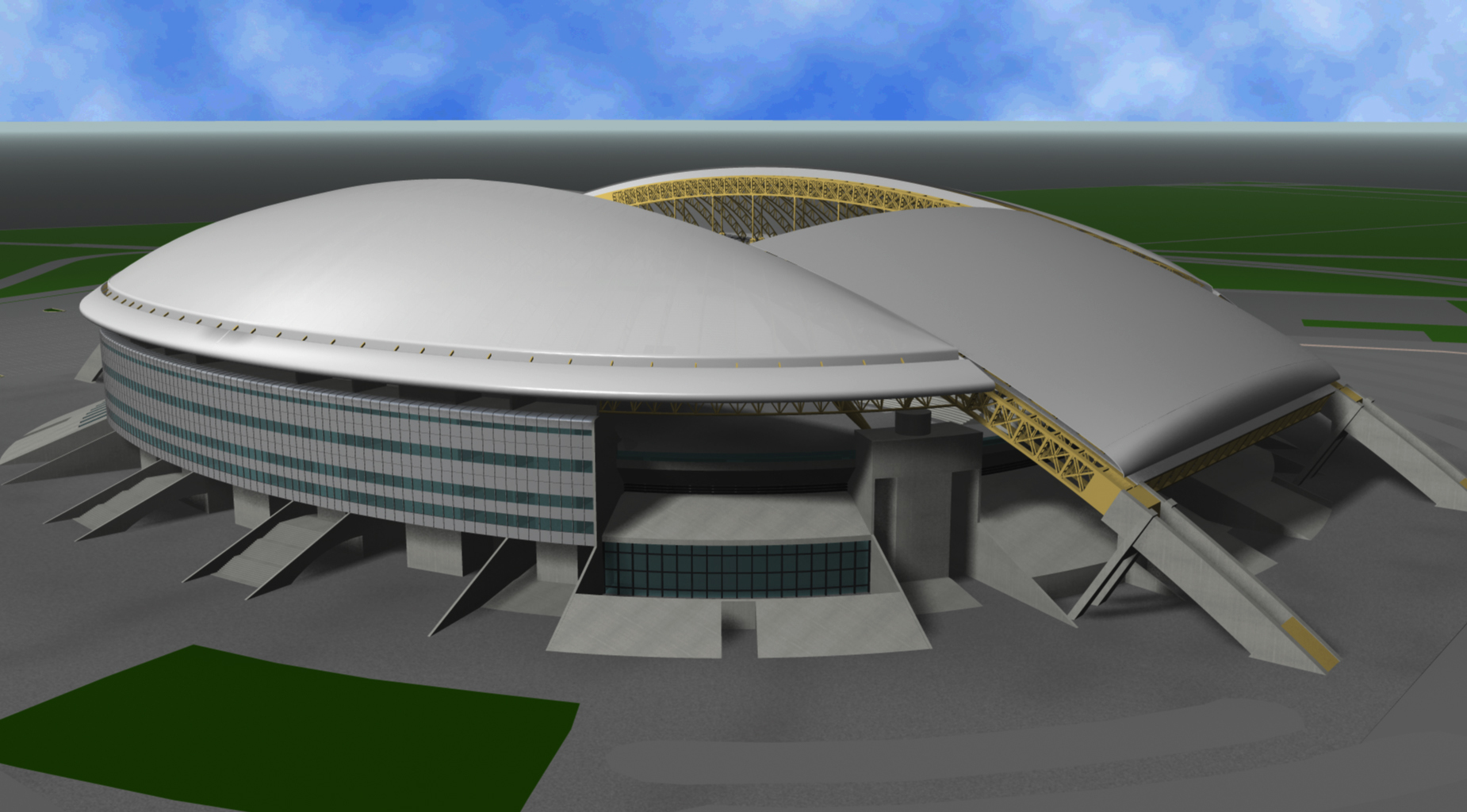

Marco Polo Stadium covers a 42’000mq area with retractable roof structure.
The main structural system is made by:

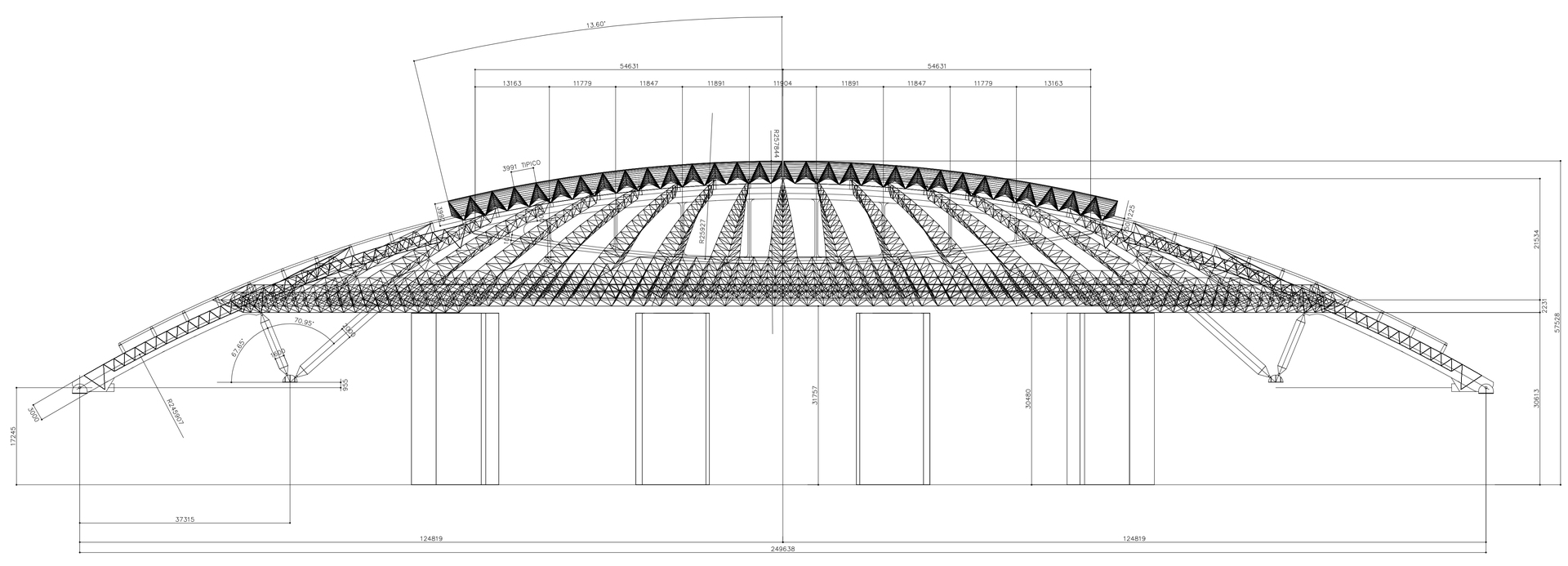

  • Huge span main longitudinal arches (that are the main bearing structure of the system);

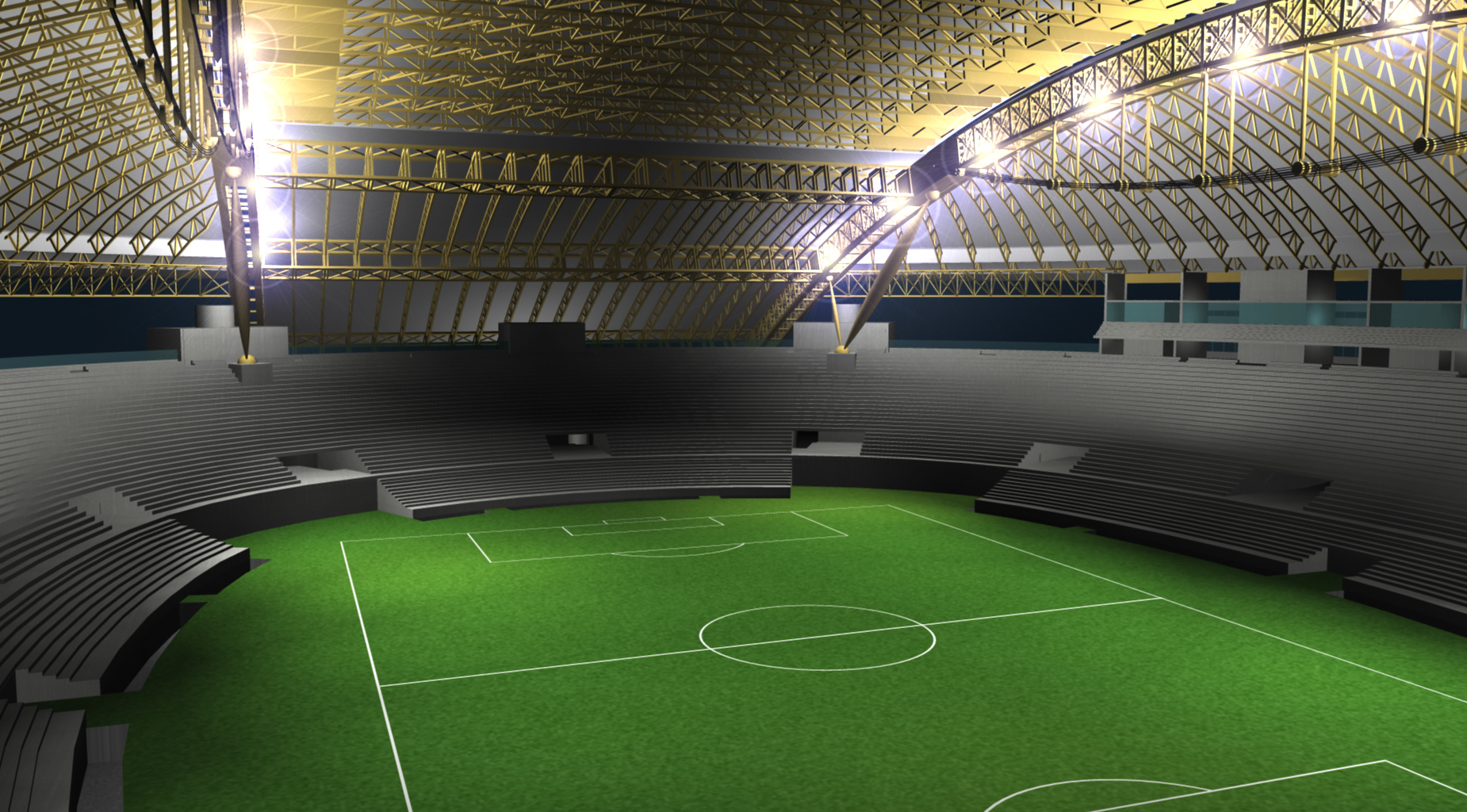

  • Lateral grandstands cover, which cover the grandstands area, even the external edge and the longitudinal arch. These are truss beams with a circular arrangement, with radial warping.;

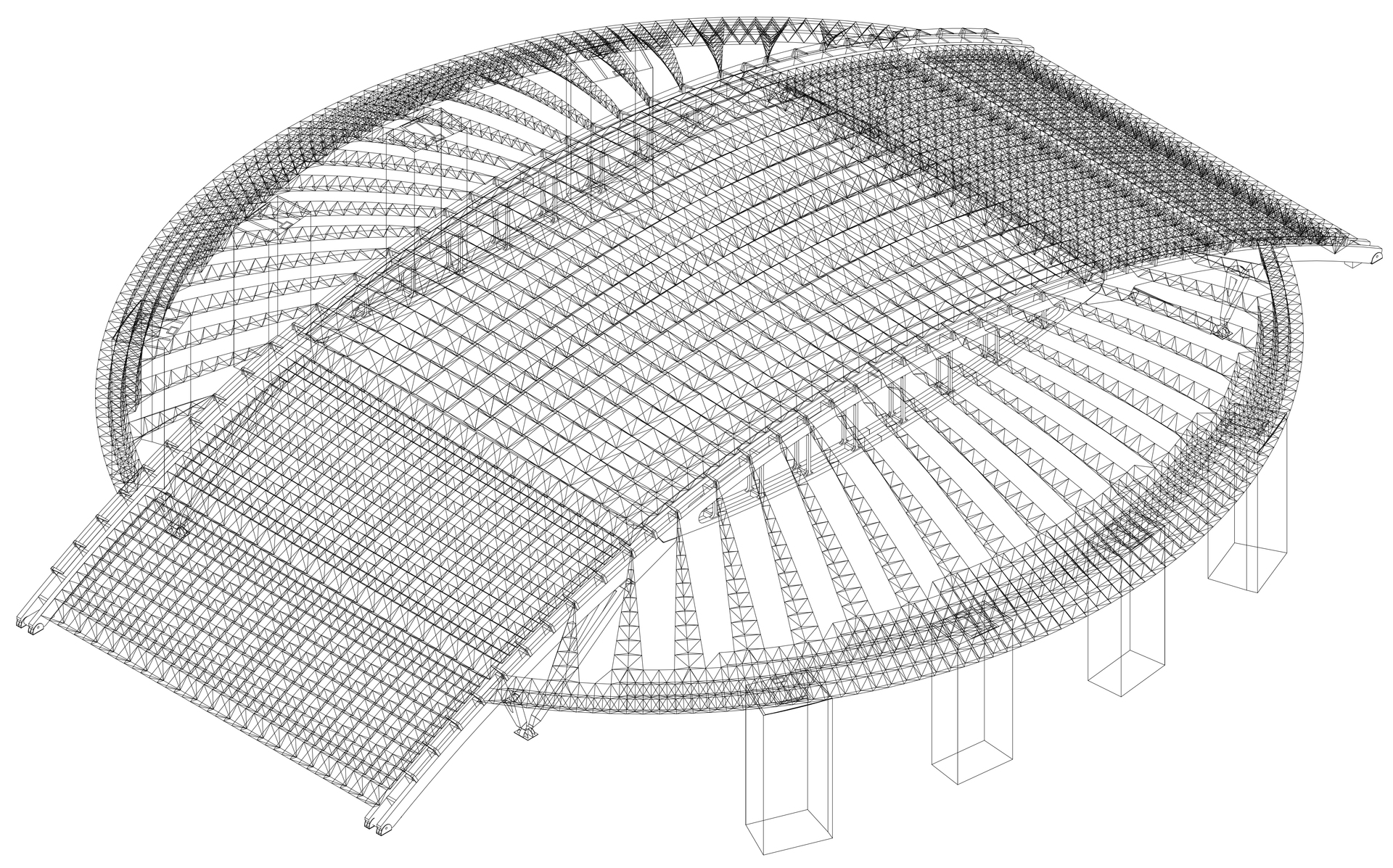

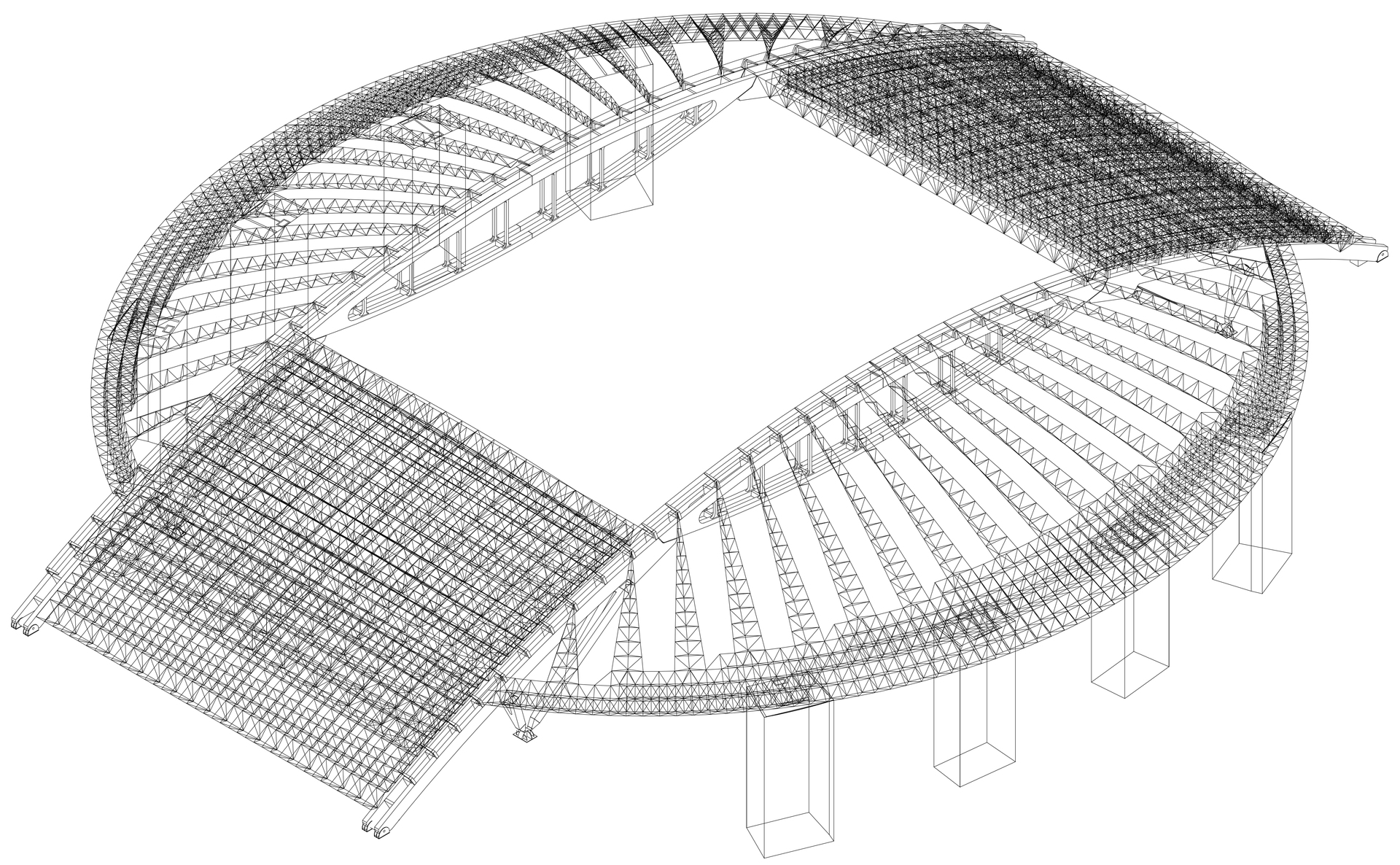

  • Central cover with panels. There can be two panels types: mixed or movable (corresponding to the field area 90x110m). These structures are spatial trusses with H profiles. The “driving mechanism” to allow a retractable movement has been proper designed and dimensioned.
  • Membrane cover panels.
Technical Sheet
Performed service
Tender structural design
Client
Impresa Mazzi SpA
Year
1999
Dimensional parameters
30.000 Seats
Surface
42.000smq
Cost of the project
62.000.000 €
