Panionios AC Stadium

Athens - 2009

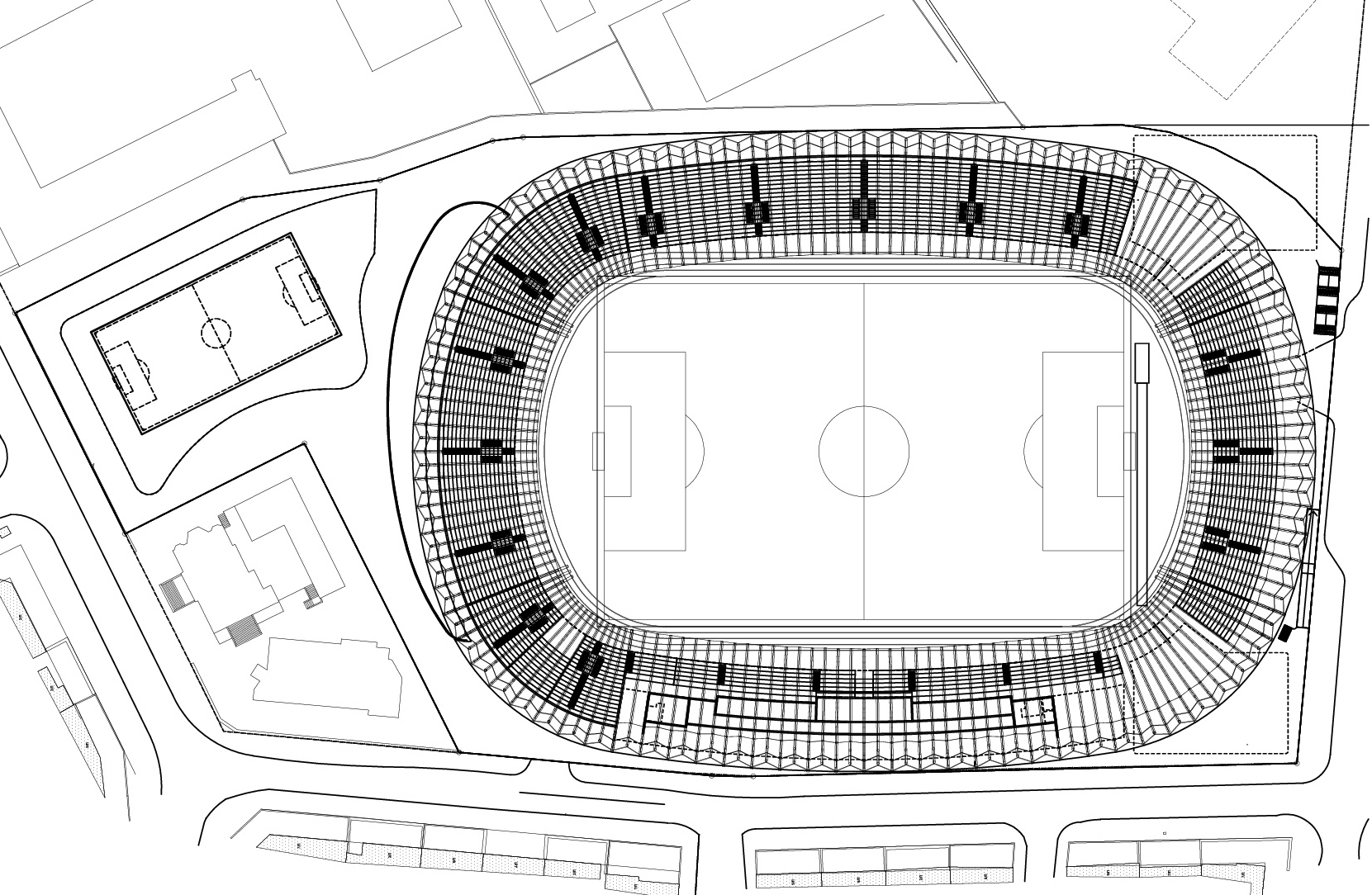

The designed is composed by a 12’460 seats and 3 star standard FIFA/UEFA stadium, a swimming pool, multi purposes sports halls, a technical area, administrative and security areas and a support zone.

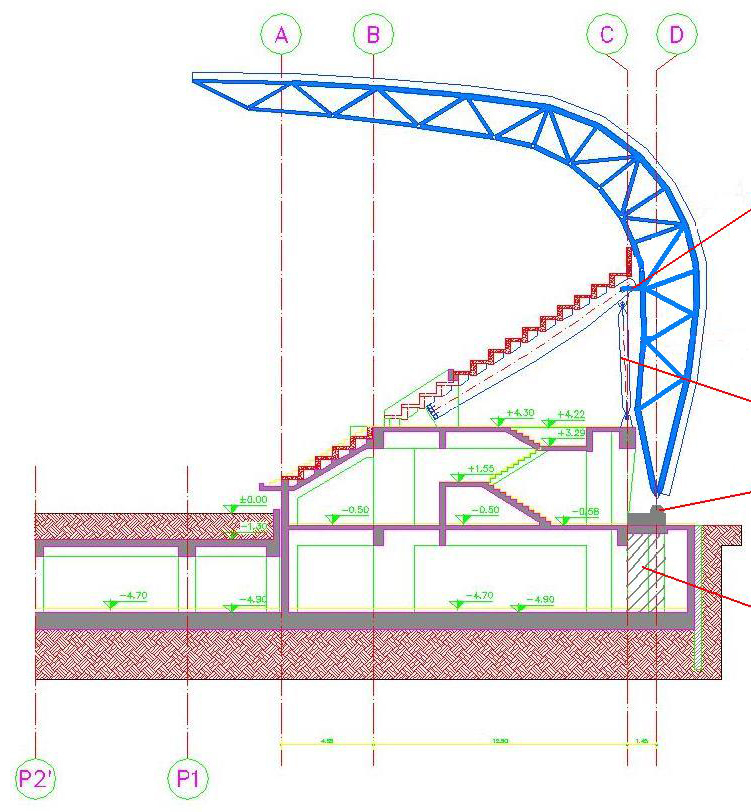

Stadium roof cover is made by an upper bent beam with RHS section (100x50cm) linked to a below lattice structure. The roof structure has a 25m length cantilever beam and its structural system is horizontally connected to the grandstands structure, where the triangle got from raker and column allow a restrain and to transfer all forces at the ground level.

Technical Sheet
Performed service
Tender Structural Design
Client
Dimand S.A.
Year
2009
