Termini Station Parking

Rome - 2012 - 2018

Garage plate in Termini Station in Rome is over the tracks zone, with a ramp to guarantee the access from Marsala road.

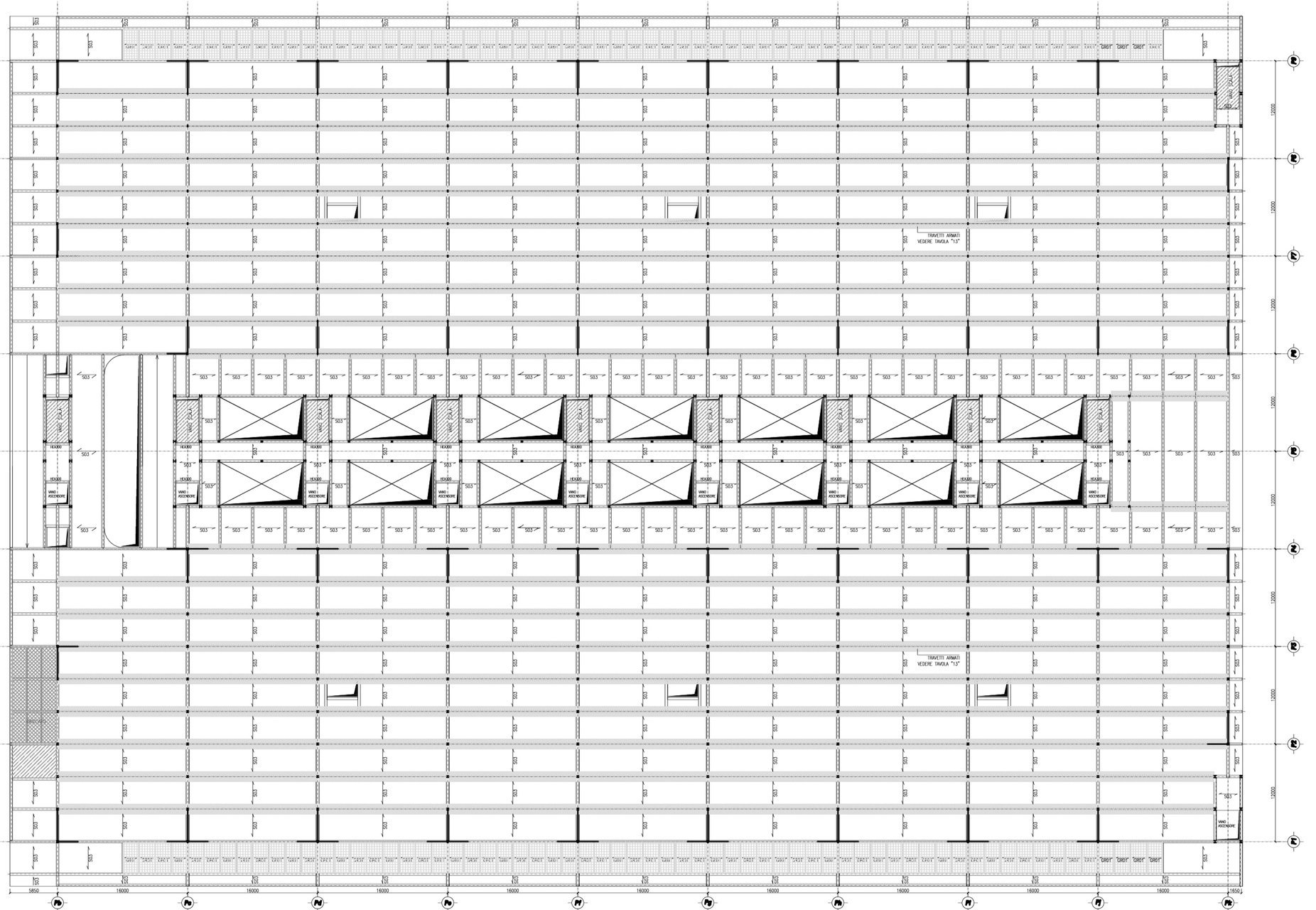

Three level of this 80m x 176m plate has been erected with function of parking.

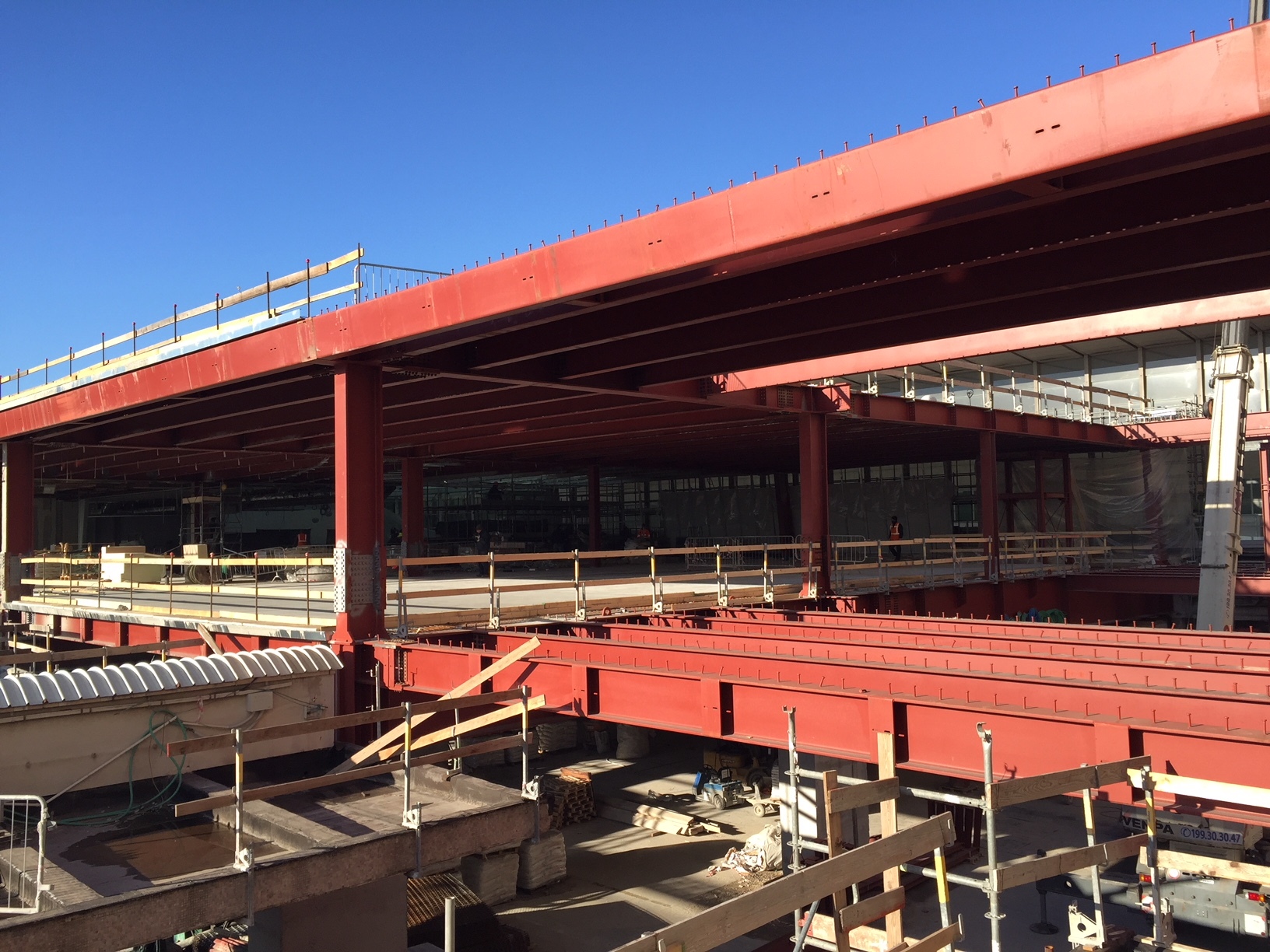

The column number has been reduced in order to minimize needed works on tracks for foundation. Each deck is made by main and secondary beams with corrugated sheet slabs working with a cast in situ reinforced concrete slab.
Beams have assembled with flange details in order to have an erection sequence as fast as possible.

Performed service
Final structural design
Client
Italferr SpA
Year
2012 - 2018
Surface
14.080smq
Cost of the project
62.000.000 €
