TAV Highspeed railway Station

Florence - 2008 - 2011, 2015 - 2016, 2020

Final architectural design has been developed by Sir. N. Foster, while final structural design has been developed by ARUP.

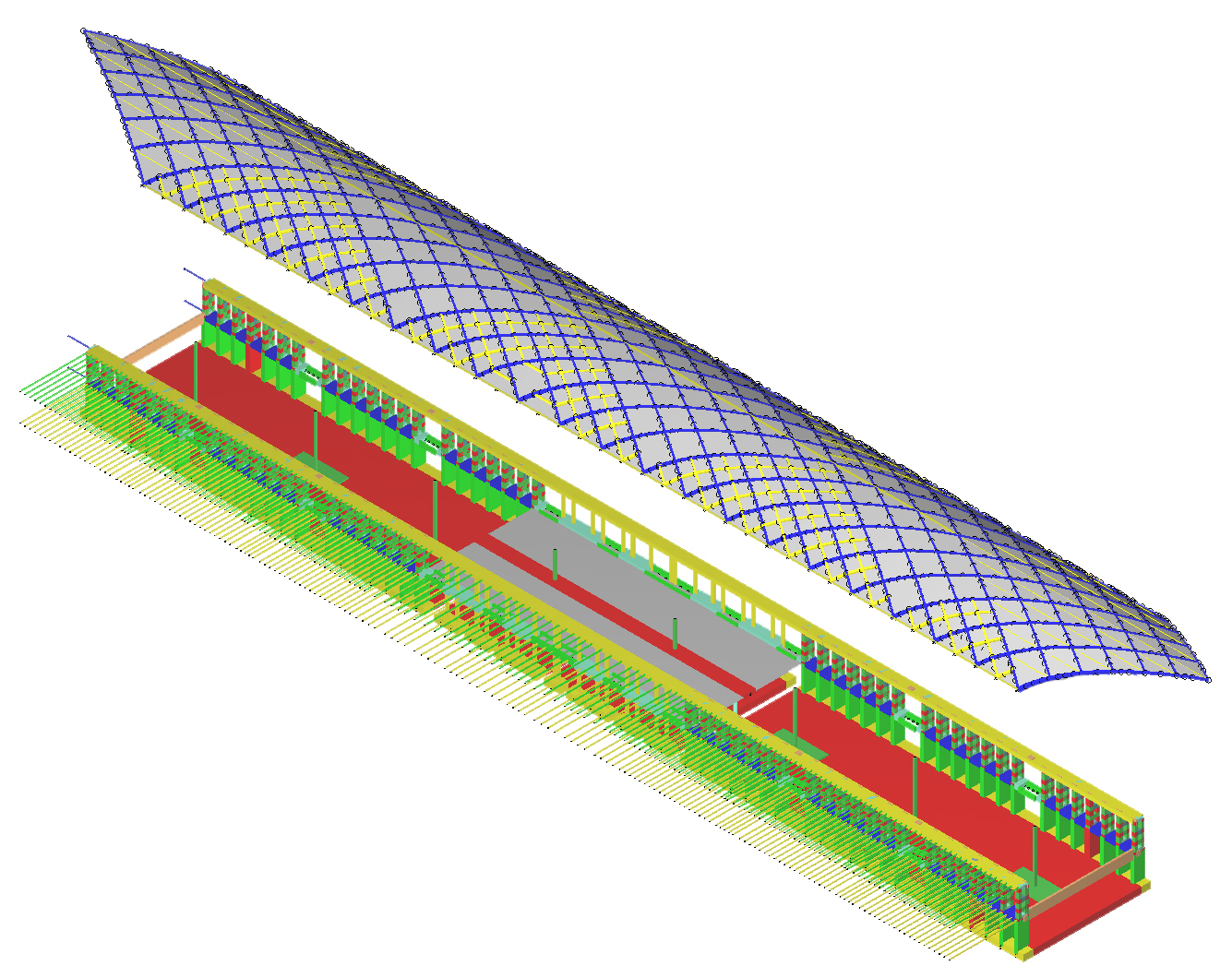

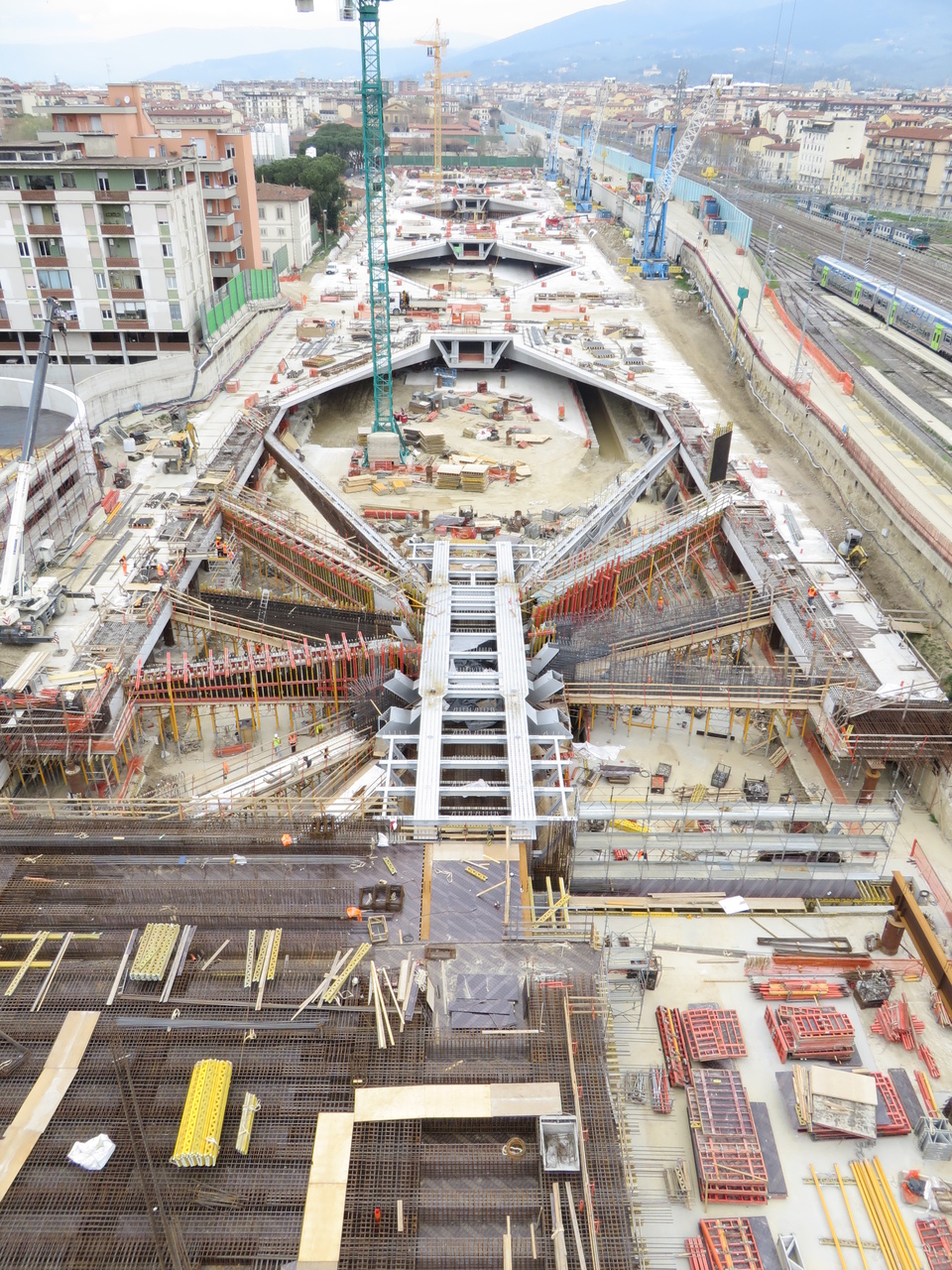

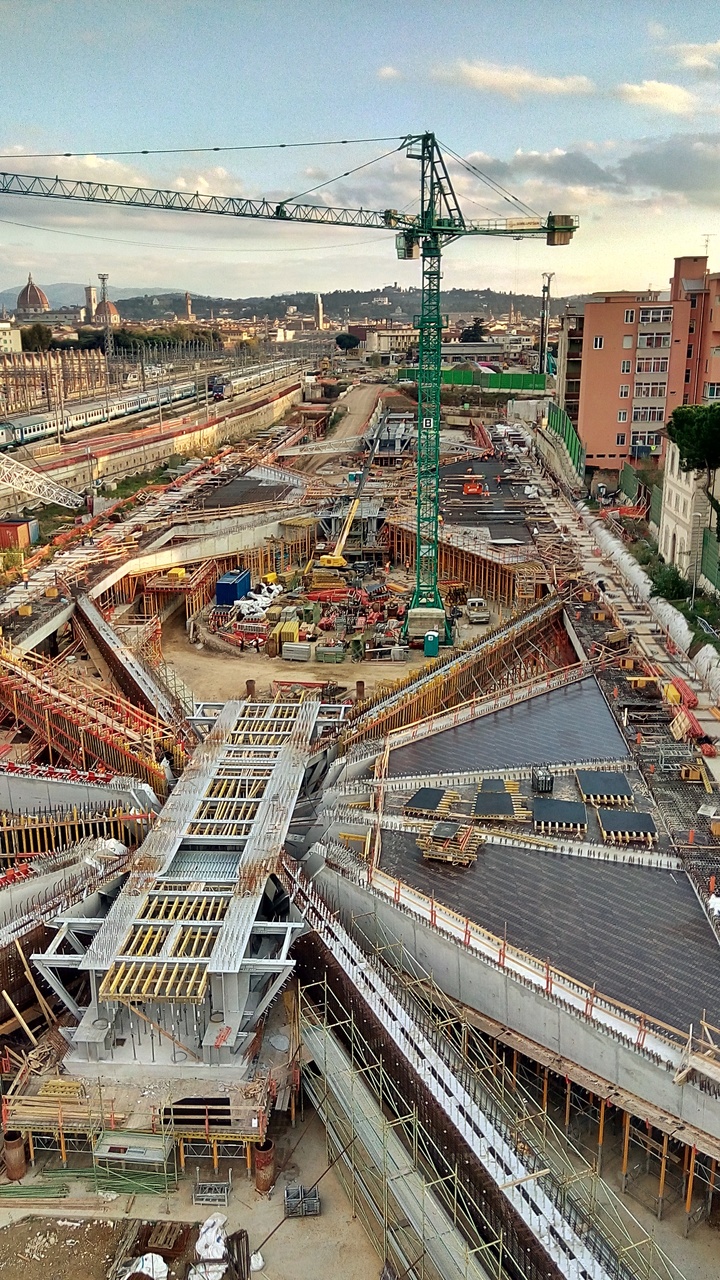

Railway Station has a dimension of 500x52m and has an underground structure of 25m depth: final design has modified erection methodology from bottom-up to top-down. Over ground part of the structure (to which 2 commercial levels are suspended) is composed by 172m span steel arches. Among preparatory design must be mentioned a double-bar underground hydraulic path 150m long, erected with the “push” technique under the rail.

Performed service

Final structural design. Working project structural design

Client
RFI Rete Ferroviaria Italiana (Italian Rialway Net)
Year
2008 - 2011
Dimensional parameters
Plan 500m x 52m
Surface
26.000smq covered
Cost of the project
250.000.000 €
